32W /8 ohm , 35W /4 ohm , 50W /4 ohm | amplifier Circuit diagram

by

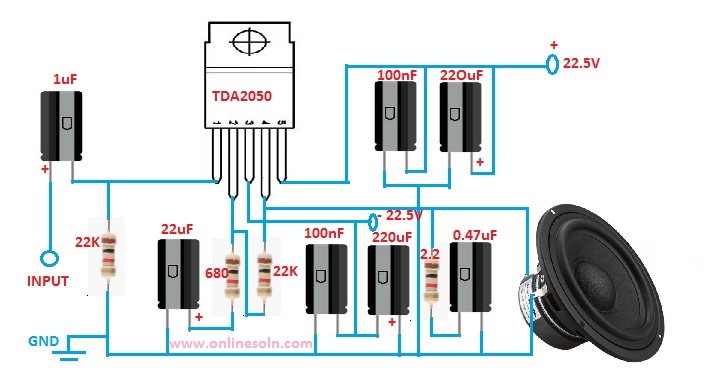

Music power amplifier  designed by using TDA2050

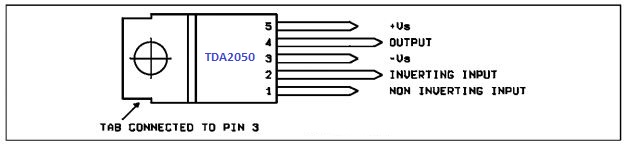

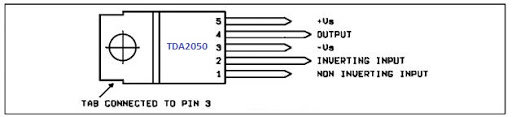

The TDA 2050 is a monolithic integrated circuit in Pentawatt package, intended for use as an audio class AB audio amplifier.

Thanks to its high power capability the TDA2050 is able to provide
  • Up to 35W true rms power into 4 ohm load @ THD = 10%, VS = ±18V, f = 1KHz
  • Up to 32W into 8ohm load @ THD = 10%, VS = ±22V, f = 1KHz. Moreover,
  • The TDA 2050 delivers typically 50W music power into 4 ohm load over 1 sec at VS= 22.5V, f = 1KHz
32W /8 ohm , 35W /4 ohm , 50W /4 ohm | amplifier Circuit diagram

32W /8 ohm , 35W /4 ohm , 50W /4 ohm | amplifier Circuit diagram
