Bridge Rectifier IC Pin out


Bridge Rectifier IC Pin out

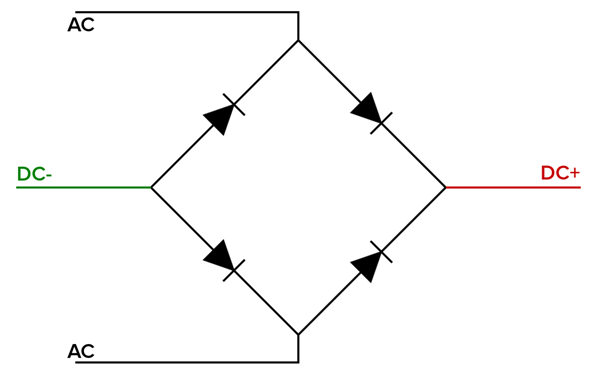

A bridge rectifier is an electrical device that converts alternating current (AC), which periodically reverses direction, to direct current (DC), which flows in only one direction. The process is known as rectification.

www.onlinesoln.com

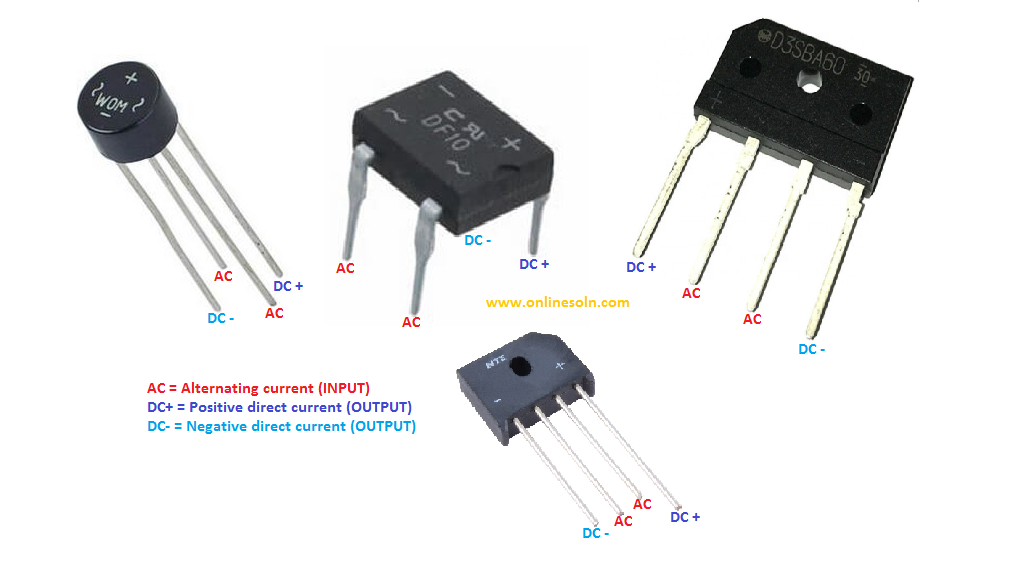

AC = Alternating current (INPUT)
DC+ = Positive direct current (OUTPUT)
DC- = Negative direct current (OUTPUT)
