Measuring transistor using multi meter

A transistor is a semiconductor device used to amplify or switch electronic signals and electrical power. It is composed of semiconductor material usually with at least three terminals for connection to an external circuit.

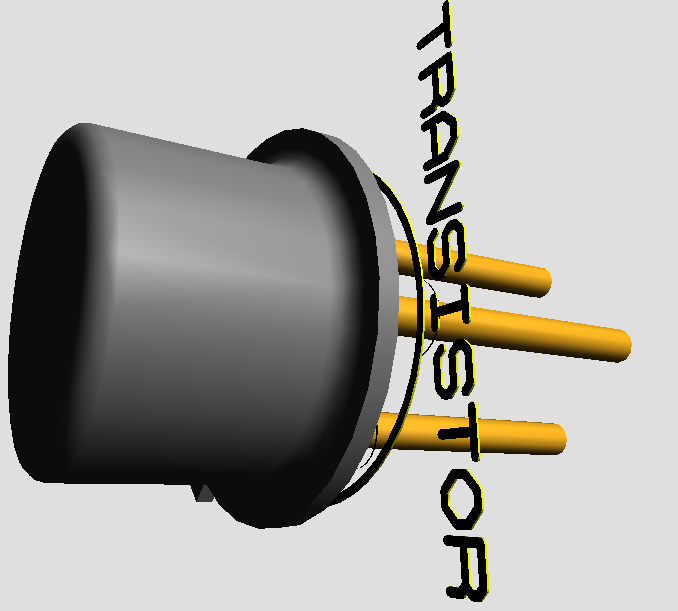

Transistor







All ways bipolar transistor have three pin which named as following.
  1. Base
  2. Collector
  3. Emitter

How to know Emitter pin, Collector pin and Base pin. Use multi meter to know it.

First set your multi meter in continuity mode and then connect
multi meter with transistor by changing pin and record the value.

Example
(Value with high leading than other indicate Emitter pin)


 PIN
 PIN
 VALUE
 COLLECTOR
 EMITTER
 –
 BASE
 COLLECTOR
 642
 BASE
 EMITTER
 649
