28-Pin, 8-Bit CMOS FLASH MCU with A/D Converter

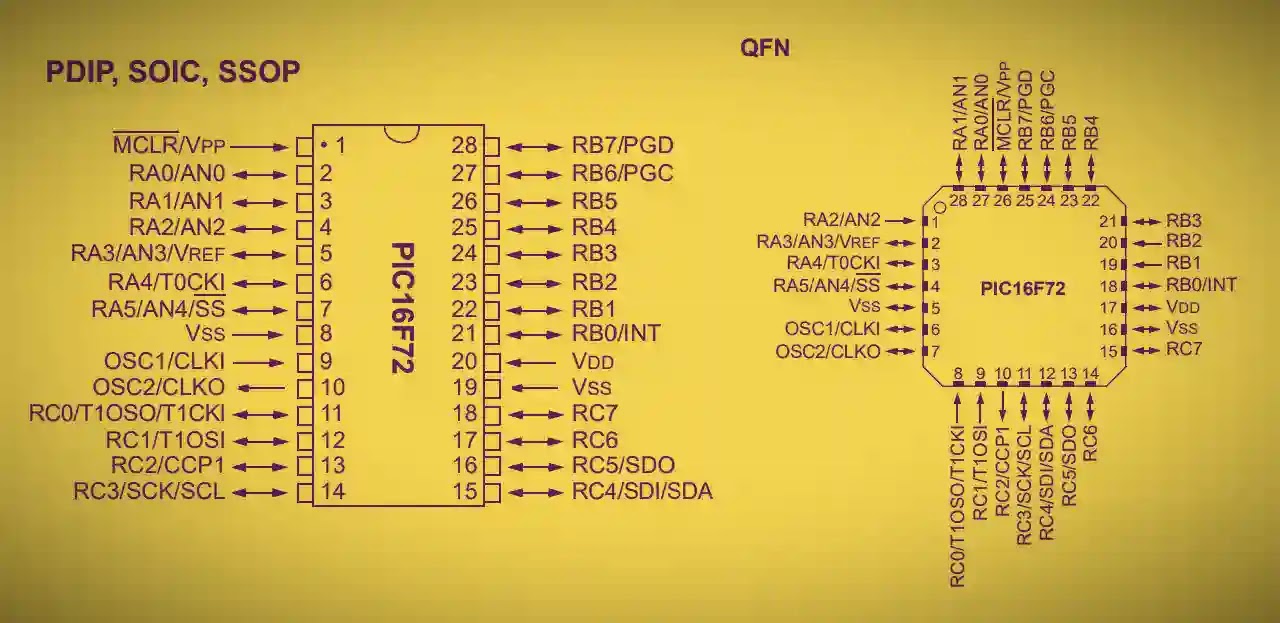

Device Included:
• PIC16F72
- PIC stands for “peripheral interface controller,”
High Performance RISC CPU:
• Only 35 single word instructions to learn
• All single cycle instructions except for program branches, which are two-cycle
• Operating speed: DC – 20 MHz clock input DC – 200 ns instruction cycle
• 2K x 14 words of Program Memory, 128 x 8 bytes of Data Memory (RAM)
• Pinout compatible to PIC16C72/72A and PIC16F872
• Interrupt capability
• Eight-level deep hardware stack
• Direct, Indirect and Relative Addressing modes
Peripheral Features:
• High Sink/Source Current: 25 mA
• Timer0: 8-bit timer/counter with 8-bit prescaler
• Timer1: 16-bit timer/counter with prescaler, can be incremented during SLEEP via external crystal/clock
• Timer2: 8-bit timer/counter with 8-bit period register, prescaler and postscaler
• Capture, Compare, PWM (CCP) module – Capture is 16-bit, max. resolution is 12.5 ns – Compare is 16-bit, max. resolution is 200 ns – PWM max. resolution is 10-bit
• 8-bit, 5-channel analog-to-digital converter
• Synchronous Serial Port (SSP) with SPI™ (Master/Slave) and I2C™ (Slave)
• Brown-out detection circuitry for Brown-out Reset (BOR)
CMOS Technology:
• Low power, high speed CMOS FLASH technology
• Fully static design
• Wide operating voltage range: 2.0V to 5.5V
• Industrial temperature range
• Low power consumption: – < 0.6 mA typical @ 3V, 4 MHz – 20 µA typical @ 3V, 32 kHz – < 1 µA typical standby current
Special Microcontroller Features:
• 1,000 erase/write cycle FLASH program memory typical
• Power-on Reset (POR), Power-up Timer (PWRT) and Oscillator Start-up Timer (OST)
• Watchdog Timer (WDT) with its own on-chip RC oscillator for reliable operation
• Programmable code protection
• Power saving SLEEP mode
• Selectable oscillator options
• In-Circuit Serial Programming™ (ICSP™) via 2 pins
• Processor read access to program memory
