THE SMOKE DETECTOR WITH A RELAY SWITCH



This circuit is used to respond to a smoke and drive  a Relay which can  be used to operate  devices like emergence lights, door and alarms


Also a relay can  be connected to the main switch to provide automatic cut off the electricity in case the fire out break.


THE SMOKE DETECTOR WITH A RELAY SWITCH | project

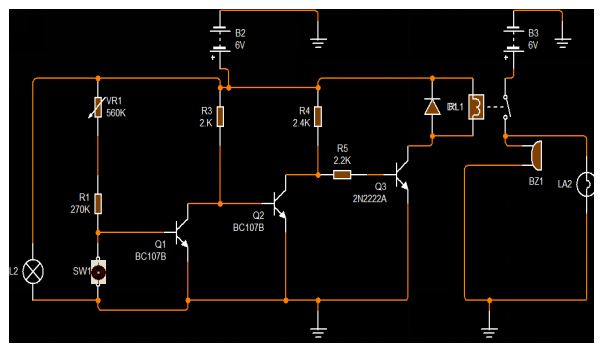

CIRCUIT

THE SMOKE DETECTOR WITH A RELAY SWITCH | project

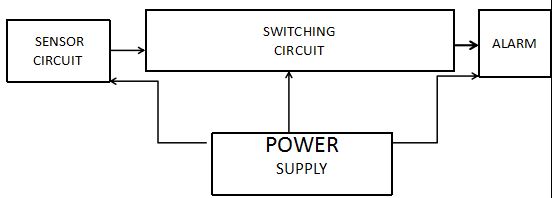

BLOCK DIAGRAM

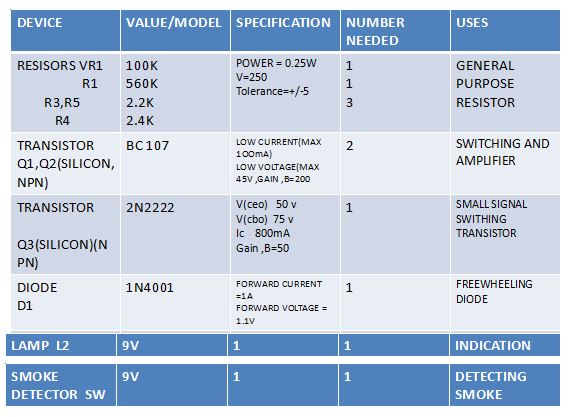

COMPONENT
