TRANSISTOR TESTING

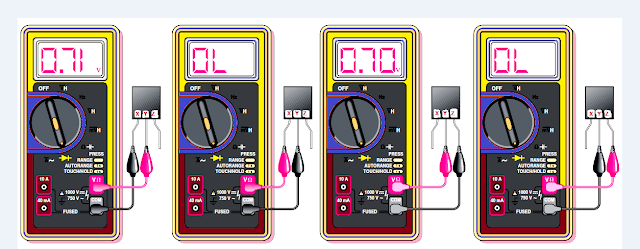

Connections of digital multi meter (DMM) for testing a transistor. The reading 2.60V is equivalent to OL for some of (DMMs)
Test your self
Which terminal of a Bipolar junction transistor (BJT) is Base, Collector, Emitter?
X=……….?
Y=……….?
Z=……….?
Y=……….?
Z=……….?
The BJT transistor under testing is NPN or PNP ?
There fore
X= Emitter
Y=Base
Z=Collector
The BJT transistor under testing is PNP
Thanks
The transistor under testing is NPN and not PNP.
