Power inverter oscillator.
What is an oscillator used for?
Oscillators convert direct current (DC) from a power supply to an alternating current (AC) signal. They are widely used in many electronic devices ranging from simplest clock generators to digital instruments (like calculators) and complex computers and peripherals
Oscillators convert direct current (DC) from a power supply to an alternating current (AC) signal. They are widely used in many electronic devices ranging from simplest clock generators to digital instruments (like calculators) and complex computers and peripherals
What is Oscillator and its types?
An oscillator is a type of circuit that controls the repetitive discharge of a signal, and there are two main types of oscillator; a relaxation, or an harmonic oscillator. This signal is often used in devices that require a measured, continual motion that can be used for some other purpose.
What is the principle of oscillator?
There are many types of electronic oscillators, but they all operate according to the same basic principle: an oscillator always employs a sensitive amplifier whose output is fed back to the input in phase. Thus, the signal regenerates and sustains itself. This is known as positive feedback.

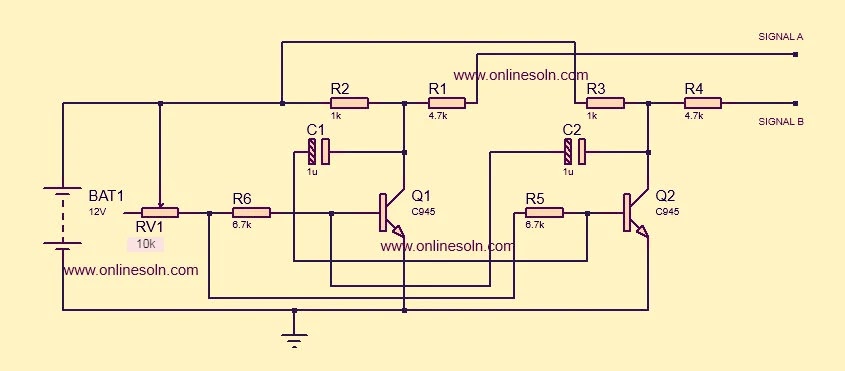

Circuit diagram for Half bridge power inverter and also you can use on Full bridge power inverter
Signal A and B are connected to mosfet
