Audio Processor IC

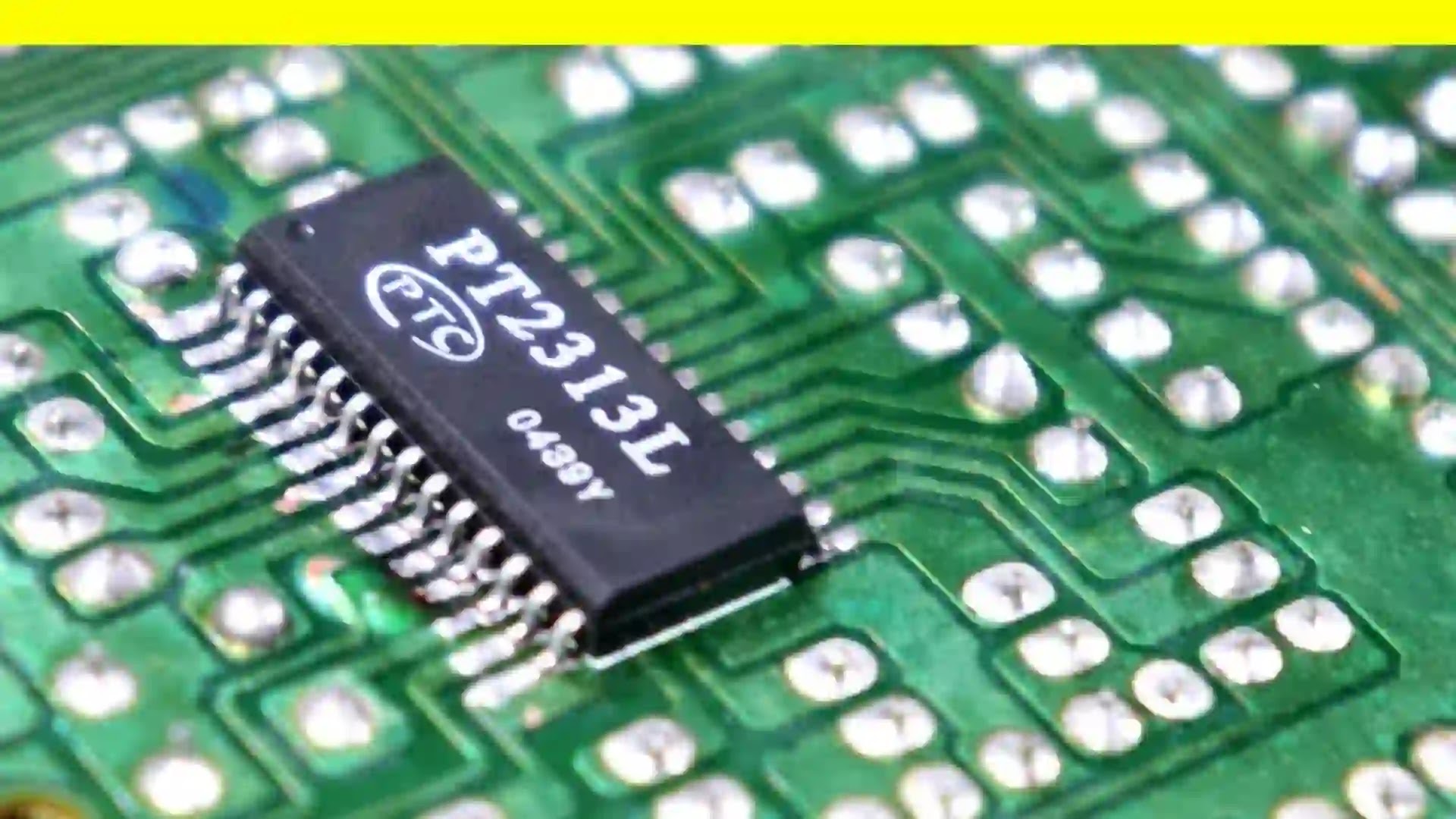

PT2313L is a four-channel digital control audio processor utilizing CMOS Technology. Volume, Bass, Treble and Balance, Front/Rear Fader Processor are incorporated into a single chip. Loudness Function and Selectable Input Gain are also provided to build a highly effective electronic audio processor having the highest performance and reliability with the least external components. All functions are programmable using the I2 C Bus.

The pin assignments and application circuit are optimized for easy PCB layout and cost saving advantage for audio application. Housed in a 28-pin DIP/SO Package, PT2313L is pin-to-pin compatible with TDA7313 and is very similar in performance with the later.
PT2313L | 4-Channel Audio Processor IC Circuit Diagram

Features

  • CMOS Technology
  • Least External Components
  • Treble and Bass Control
  • Loudness Function
  • 3 Stereo Inputs with Selectable Input Gain
  • Input/Output for External Noise Reduction System/Equalizer
  • 4 Independent Speaker Controls for Fader and Balance
  • Independent Mute Function ! Volume Control in 1.25 dB/step
  • Low Distortion ! Low Noise and DC Stepping
  • Controlled by I2 C Bus Micro-Processor Interface
  • Pin-to-pin Compatible with TDA7313

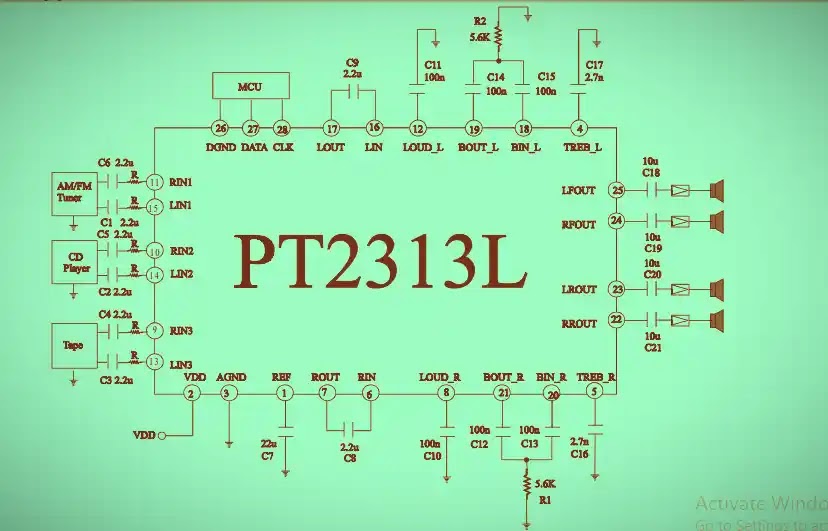

PT2313L | 4-Channel Audio Processor IC Circuit Diagram
Note:
  1. The Resistor ( R ) Range = 2.0K Ohms to 3.6 K Ohms.
  2. Resistor ( R ) Recommended Value = 2.4 K Ohms
Applications
  • Car Stereo (Audio)
  • Hi-Fi Audio System
