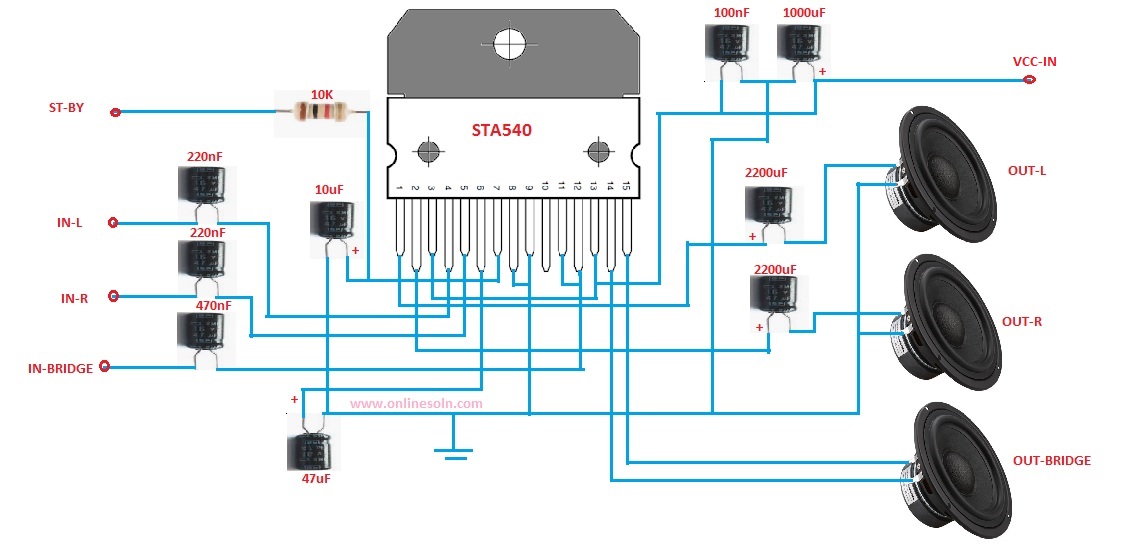

Stereo plus bridge drive
Description
The STA540 is a 4-channel, class-AB audio amplifier designed for high quality sound applications.
The amplifiers have single-ended outputs with integrated short-circuit protection, thermal protection and diagnostic functions.
The best audio performance is obtained with the configuration where each speaker
has its own DC blocking capacitor
Suggested applications:
2x 9 W into 2 Ω, +1x 18 W into 4 Ω, at 12 V
2x 12 W into 2 Ω, +1x 26 W into 4 Ω, at 14.4 V
2x 8 W into 4 Ω, +1x 16 W into 8 Ω, at 16 V

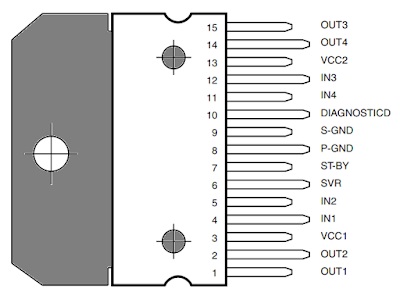

STA540 Pin out
